TS SERIES – 0,001g – 0,01g – 0,1g

TS precision balances are the most innovative and advanced series by OPTIKA. Equipped with large 5’’ color touch screen display, it gives an user-friendly access to all the balance’s
advanced applications and internal databases. The user has easy and intuitive access to all the functions thanks to the icondriven menus. This means more efficiency, productivity and interactivity. A double case structure protects the heart of the balance: an aluminum inner case and a composite plastic external case. With resolution from 0,001g to 0,1g this serie offers a wide choice of models for many application with the simplicity of a touch screen interface.
The many on-board functions already included, up to 6 operating languages, the large 5’’ inch display and the RS232 serial output close the circle of a complete product, reliable and truly convenient.



Related Documents:

Icon OPTIKA - Balances Catalogue - 1.87 MB
Icon OPTIKA - Serie TS-TSI - Instruction Manual - EN - 3.35 MB
Icon OPTIKA - Serie TS-TSI - Instruction Manual - IT - 4.80 MB
Icon OPTIKA - Serie TS-TSI - Instruction Manual - PT - 4.58 MB
Icon OPTIKA - Serie TS-TSI - Quick Guide - EN-IT - 728.35 KB



Get a quote

(1) Only TS-C523i, TS-C723i, TS-CH1203i, TS-CH2103i, TS-D4202i, TS-D6202i, TS-D8202
(2) Only TS-E303i, TS-F3202i, TS-G10001

Features

Images are for illustrative purposes only

» Electromagnetic force restoration weighing system ( for models TS-C / TS-D)
» Highly integrated weighing cell ( for models TS-C / TS-D)
» High resolution load cell weighing system ( for models TS-E / TS-F/ TS-G)
» Automatic internal calibration ( for models TS-C / TS-D / TS-E / TS-F)
» 5’’ Touch-screen Display 800×480
» RS232 serial interface
» Selectable Measuring units
» Internal Database
» GLP
» Multi Languages (EN-DE-FR-IT-SP-PT)
» Multi-user with password protection

» USB port for import/export database data
» Advanced piececounting function with Statistcs report
» Advanced Density function, with density index (DI) calculation
» Formulation (Recipe)
» Checkweighing
» Percentual weighing
» Weights adding
» Animal weighing
» Max load determination (Peak hold)

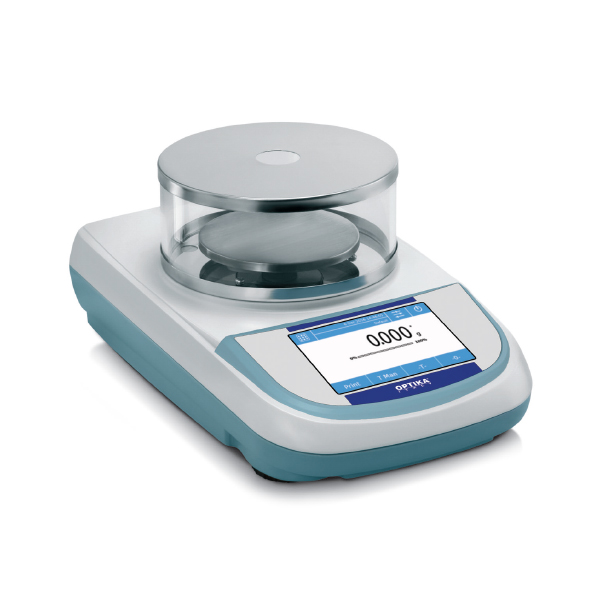

» Round glass windshield

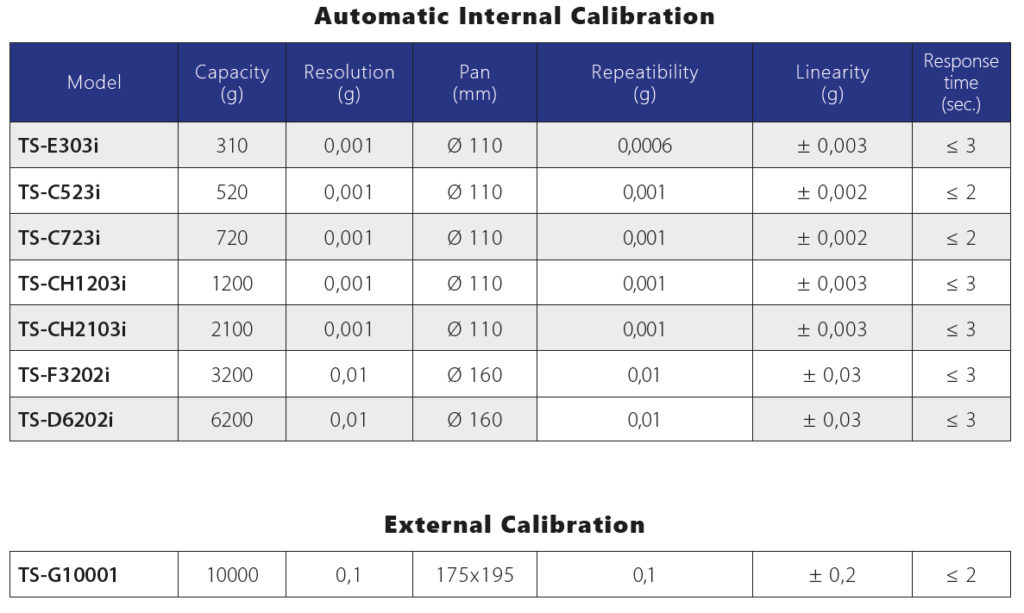

Technical Data

Balance technical data
• Span drift (+ 10…+ 30 °C): +/– 2ppm/°C
• Dimensions LxWxH (mm): 345x215x345
• Weighing chamber diameter-Height (mm) 0,001g res. models: 150×70
• Power supply M models 110-230Vac, 50/60Hz; output 24V 500mA 13VA
• Power supply L models 110-230Vac, 50/60Hz; output 9V 1,2A 10VA
• Net Weight: 6,7 Kg



Accessories

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Density KIT for solids and liquids (CNS002)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• USB pendrive 8 Gigabyte (CNS020)
• Stylus pen for touchscreen (CNS021)
• Factory Calibration certificate (CNS0333)
