SM SERIES – 0,01mg

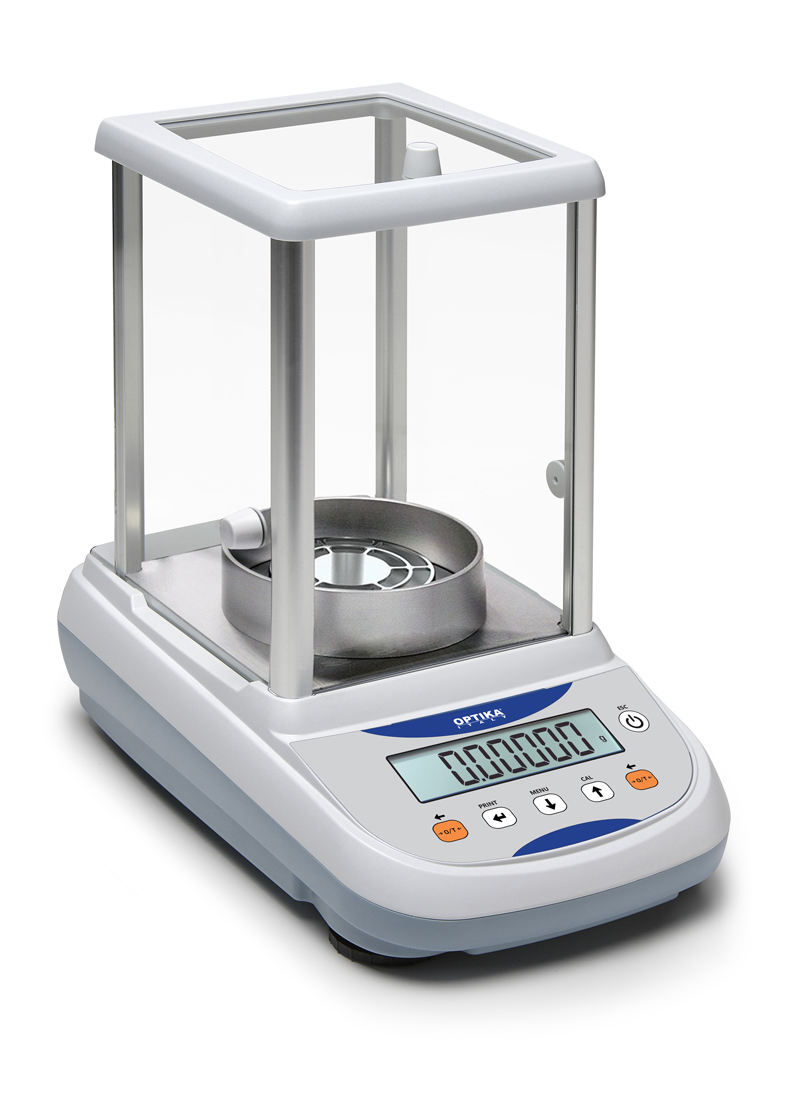

The OPTIKA series of SemiMicro SM balances is equipped with the new highly integrated electromagnetic cell, with automatic internal calibration on all models, they are characterized by a high level of precision and repeatability.
As in the tradition of OPTIKA products, SemiMicro SM balances deliver an excellent performance/price ratio.





Related Documents:





(1) If connected to optional STAT printer (CNS022)

Images are for illustrative purposes only

» Electromagnetic force restoration weighing system
» Highly integrated weighing cell
» Automatic internal calibration
»Efficient filtering to deliver quick and accurate results
» LCD with backlight with adjustable contrast
» Large glass draught shield with 3 sliding doors for easy access to the items being weighed
» Plastic protection cover for keypad

Balance technical data
• Span drift (+ 10…+ 30 °C): +/– 2ppm/°C
• Dimensions LxWxH (mm): 345x215x345
• Weighing chamber dimensions LxWxH (mm): 162x171x225
• Dimensions of external electronics box LxWxH: 175x105x50 (mm), weight 500g
• Power supply 110-230Vac, 50/60Hz; output 24V 500mA 13VA
• Net Weight: 7Kg

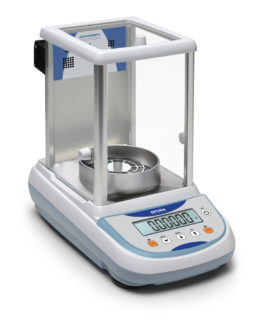

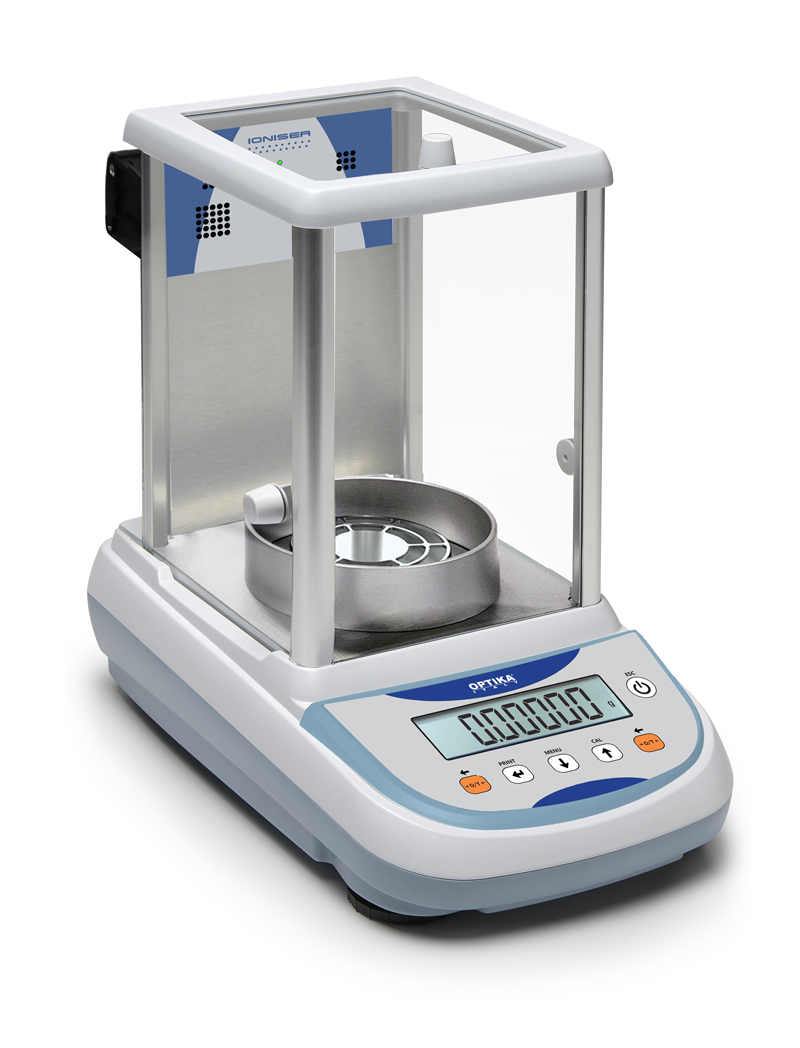

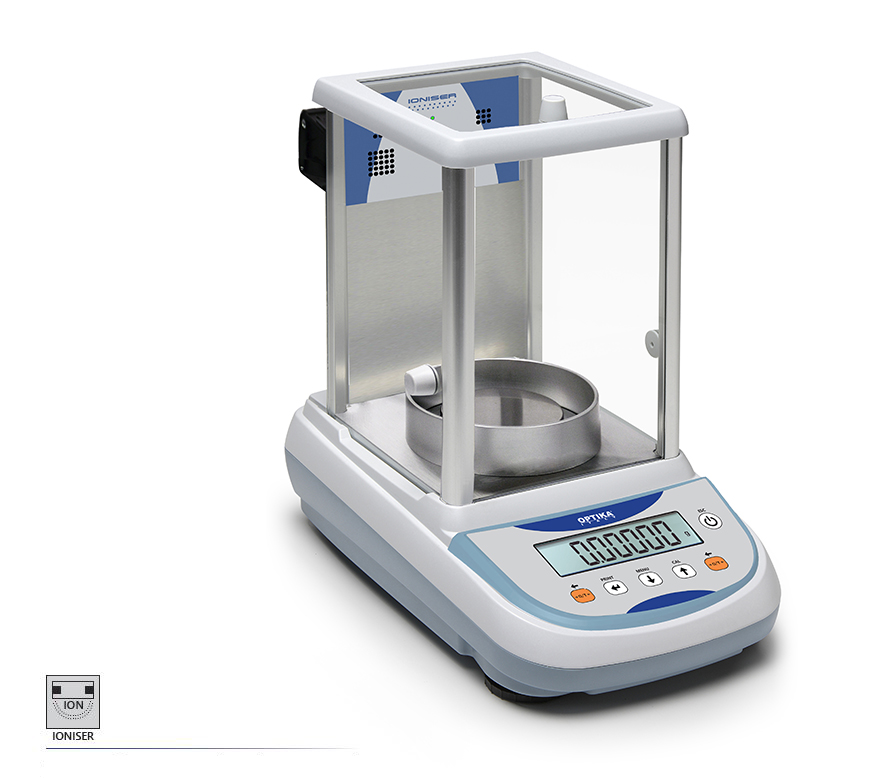

Ioniser technical data
• Operation modes: 2 minutes or continuosily for max 8 hours
• Ozone concentration: 0-0.05 ppm (2cm from ion source)
• Distance sample-ion source: about 5-40 cm
• Discharge time: 9s/5cm, 13s/10cm
• Ambient conditions: 0-50°C, 20-80% air humidity (non-condensing)
• Ioniser Power supply: IN AC 100-240V 50/60Hz, OUT DC 12V, 500mA

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Serial Printer STAT , with Stastistics functions (CNS022)
• Density KIT for solids and liquids (CNS002)
• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
