JW SERIES – 0,001ct / 0,001g – 0,01g

The JW family of balances was designed for use in jewelry applications. This family includes the Carat Series with high precision and the Gold Series for higher capacity weighing of precious metals. JW balances are all provided with RS232 connectivity; 0.1mg and 1mg models are equipped with a large protection draftshield.



Related Documents:

Icon OPTIKA - Balances Catalogue - 1.87 MB
Icon OPTIKA - Serie - JW - Instruction Manual - EN - 2.48 MB
Icon OPTIKA - Serie - JW - Instruction Manual - IT - 5.46 MB



Get a quote

Features

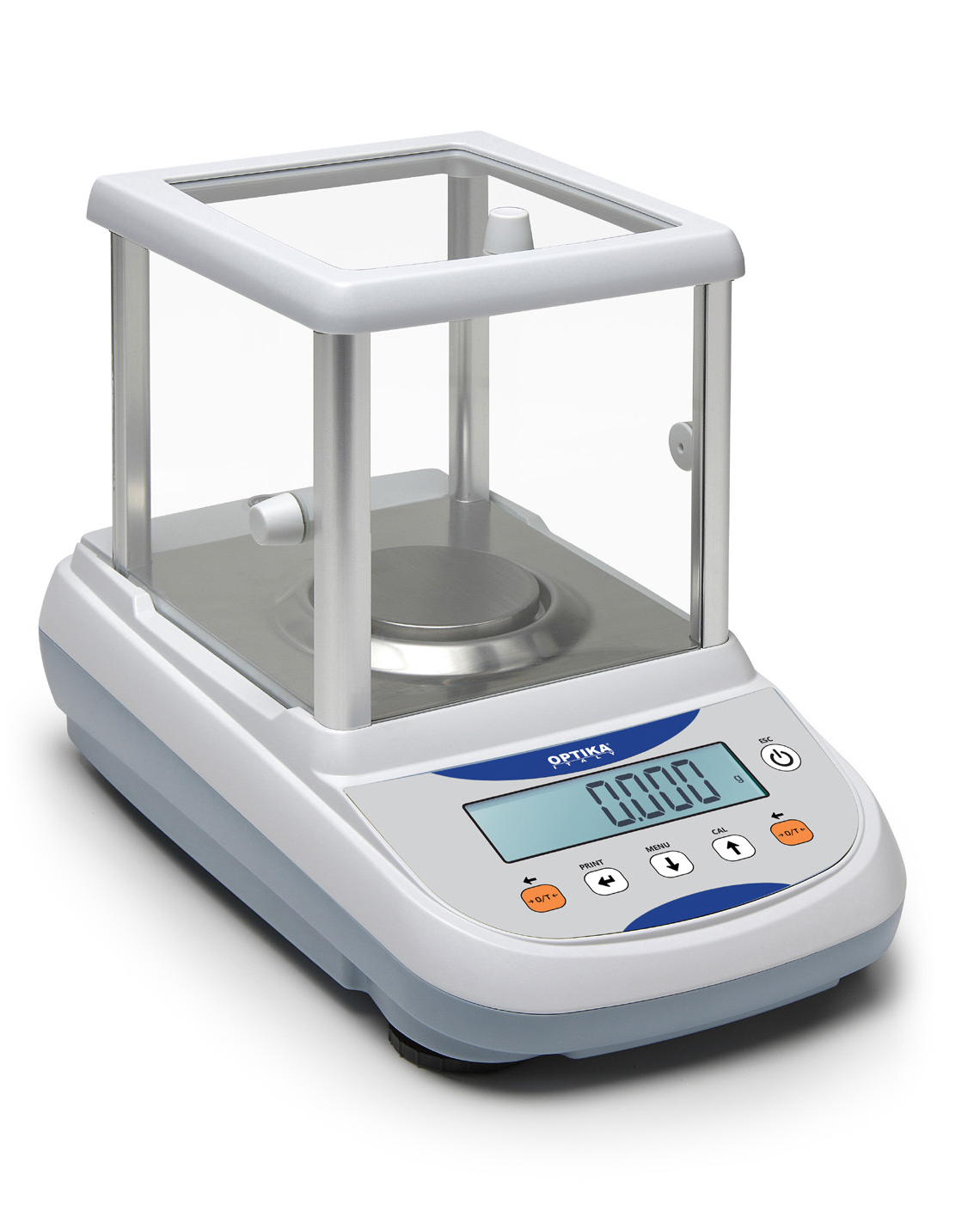

Images are for illustrative purposes only

» Electromagnetic force restoration weighing system
» External or automatic internal calibration
» g/ct swapping button on keypad
»Glass draught shield with 3 sliding doors for easy access to the items being weighed
» 0,01 resolution models are not provided with glass draught shield
» Plastic protection cover

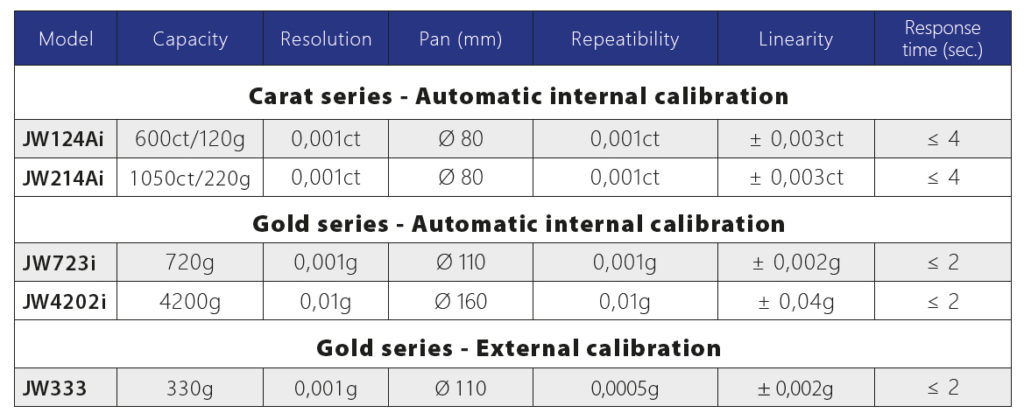

Technical Data

Technical data
• Dimensions LxWxH (mm): 345x215x290 (models 0,1mg and 1mg)
• Weighing chamber LxWxH (mm): 162x171x170 (models 0,1mg and 1mg)
• Dimensions LxWxH (mm): 345x215x100 (models 0,01g)
• Power supply 110-230Vac, 50/60Hz; output 24V 500mA 13VA

External calibration models
• Net Weight 0,1mg: 6,2Kg
• Net Weight 0,001g: 6,2Kg
• Net Weight 0,01g: 4,6Kg

Internal calibration models
• Net Weight 0,1mg: 6,5Kg
• Net Weight 0,001g: 6,5Kg
• Net Weight 0,01g: 5,1Kg

Accessories

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Serial Printer STAT, with Stastistics functions (CNS022)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
