H SERIES – 0,001g

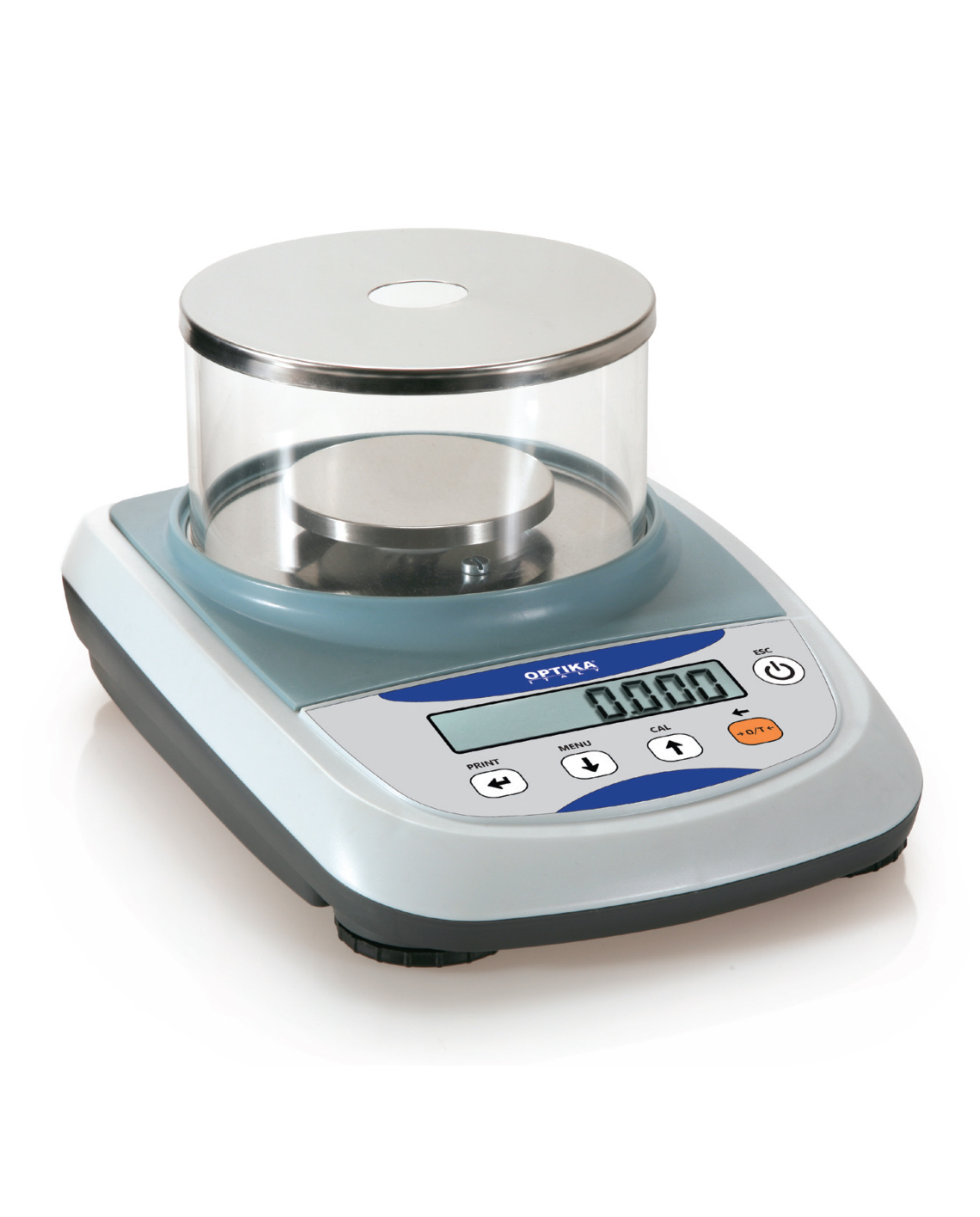

A fusion of design and quality, H Series balances enclose all the experience of higher class models in a small footprint portable balance. Thanks to the sophisticated software and to a high-performance load cell, these balances reach maximum capacity of 420 grams. Solid structure, ergonomic keypad and the many embedded software functions make this balance a complete product at a very competitive price.



Related Documents:

Icon OPTIKA - Balances Catalogue - 1.87 MB
Icon OPTIKA - Serie H-I-L-M- Instruction Manual - EN - 1.84 MB
Icon OPTIKA - Serie H-I-L-M - Instruction Manual - IT - 1.86 MB
Icon OPTIKA - Serie H-I-L-M - Instruction Manual - FR - 2.38 MB
Icon OPTIKA - Serie H-I-L-M - Instruction Manual - DE - 2.26 MB
Icon OPTIKA - Serie H-I-L-M - Instruction Manual - PT - 2.33 MB



Get a quote

(1) Optional external battery pack (CNS015)

Features

Images are for illustrative purposes only

» High resolution load cell weighing system
» Small footprint
» External calibration
» LCD with backlight with adjustable contrast
» Round glass windshield
» Plastic protection cover

Optional functions
Paper Grammage Function (CNS219)

Technical Data

Technical data
• Span drift (+ 10…+ 30 °C): +/- 5ppm/°C
• Dimensions LxWxH (mm): 190x255x130
• Weighing chamber dimensions diameter- Height (mm): 133×70
• Power supply 110-230Vac, 50/60Hz; output 9V 1,2A 10VA
• Net Weight: 1,6Kg

Accessories

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Serial Printer STAT, with Stastistics functions (CNS022)
• Density KIT for solids and liquids (CNS002)
• Density KIT for solids (CNS001)
• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
• Comunication KIT for balances (CNS0476)
• Rechargeable battery pack external (CNS015)
