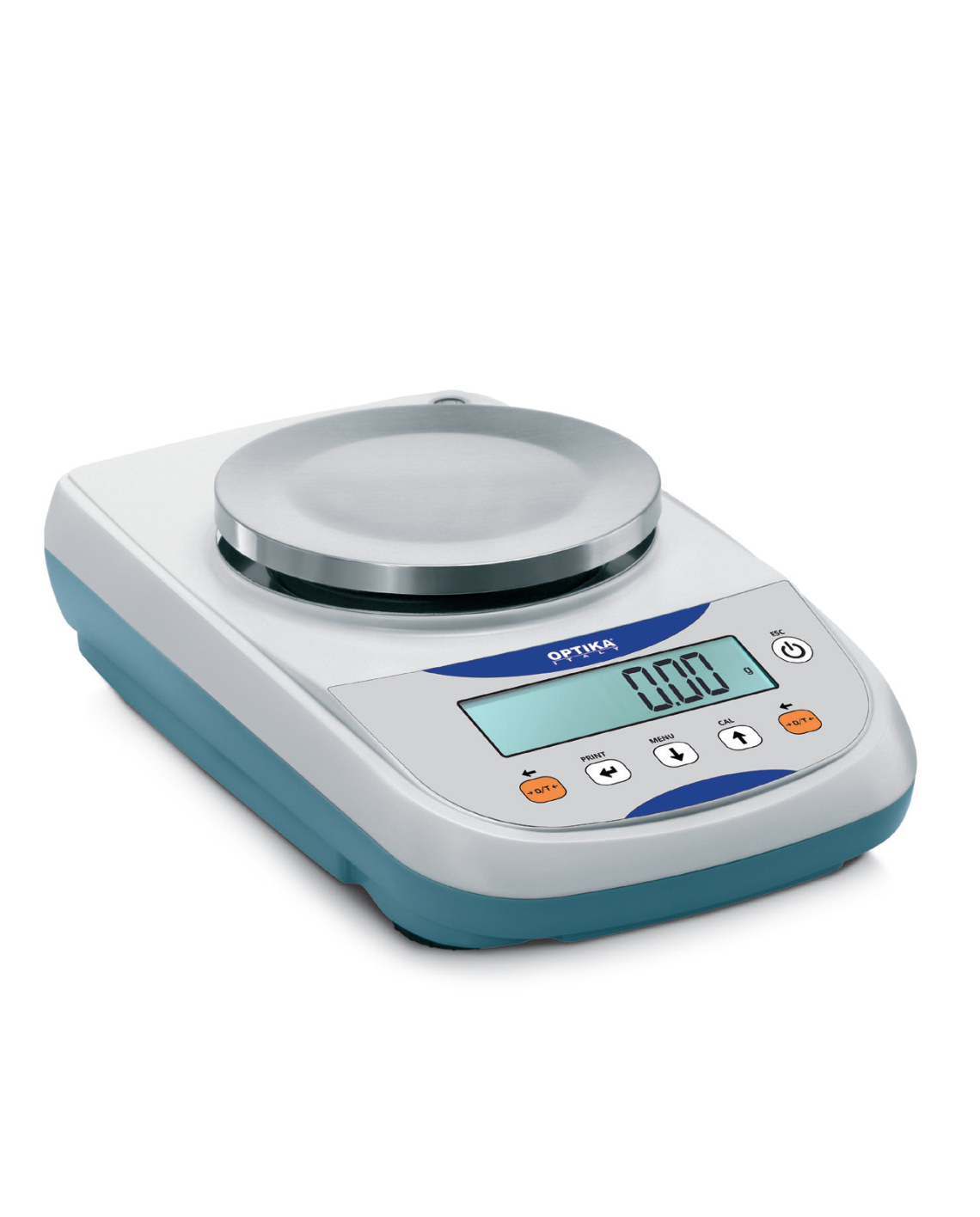

F SERIES – 0,01g

F Series balances are a synthesis of design, performance and convenience. Thanks to a sophisticated software and to a highperformance load cell, these balances deliver top performance at competitive prices. Double case structure, ergonomic keypad, external or internal calibration. Many embedded advanced features make them perfect for your work.



Related Documents:

Icon OPTIKA - Balances Catalogue - 1.87 MB
Icon OPTIKA - Serie B-C-CH-D-E-EH-F-G - Instruction Manual - EN - 2.05 MB
Icon OPTIKA - Serie B-C-CH-D-E-EH-F-G - Instruction Manual - IT - 2.19 MB
Icon OPTIKA - Serie B-C-CH-D-E-EH-F-G - Instruction Manual - ES - 2.47 MB
Icon OPTIKA - Serie B-C-CH-D-E-EH-F-G - Instruction Manual - FR - 2.70 MB
Icon OPTIKA - Serie B-C-CH-D-E-EH-F-G - Instruction Manual - PT - 2.54 MB
Icon OPTIKA - Serie - B-C-CH-D-E-EH-F-G-BG-CG- CGH-DG-EG-EGH-FG-GG - Quick Guide - EN - IT - PT - 1.20 MB



Get a quote

(1) Not available for verified models
(2) To order Verification please add -M to name, e.g. F1002i-M
(3) Only for external calibration model
(4) Optional external battery pack (CNS015)

Features

Images are for illustrative purposes only

» High resolution load cell weighing system
» External or automatic internal calibration
» LCD with backlight with adjustable contrast
» Plastic protection cover
» Under hook weighing (1)

Optional functions
Paper Grammage Function (CNS219)

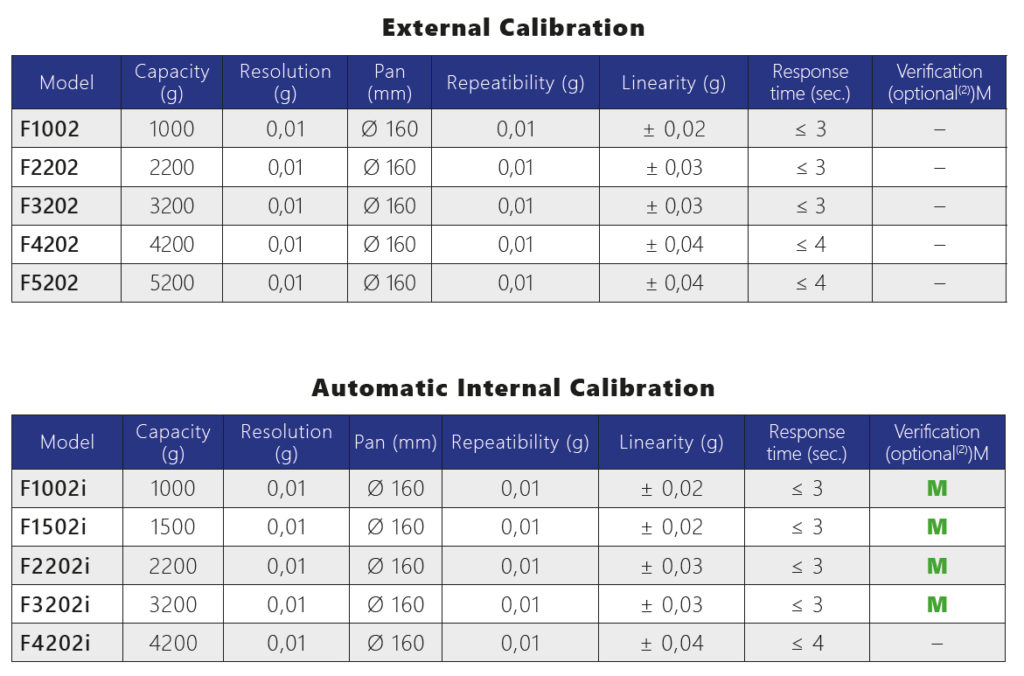

Technical Data

Technical data
• Span drift (+ 10…+ 30 °C): +/- 5ppm/°C
• Dimensions LxWxH (mm): 345x215x100
• Power supply 110-230Vac, 50/60Hz; output 9V 1,2A 10VA

External calibration models
Net Weight: 3,3Kg

Internal calibration models
Net Weight: 3,6Kg

Accessories

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Serial Printer STAT, with Stastistics functions (CNS022)
• Portable rechargeable battery pack (CNS015)
• Density KIT for solids and liquids (CNS004)
• Density KIT for solids (CNS001)
• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
• Comunication KIT for balances (CNS0476)
• Conformity Declaration (Verification(2))
