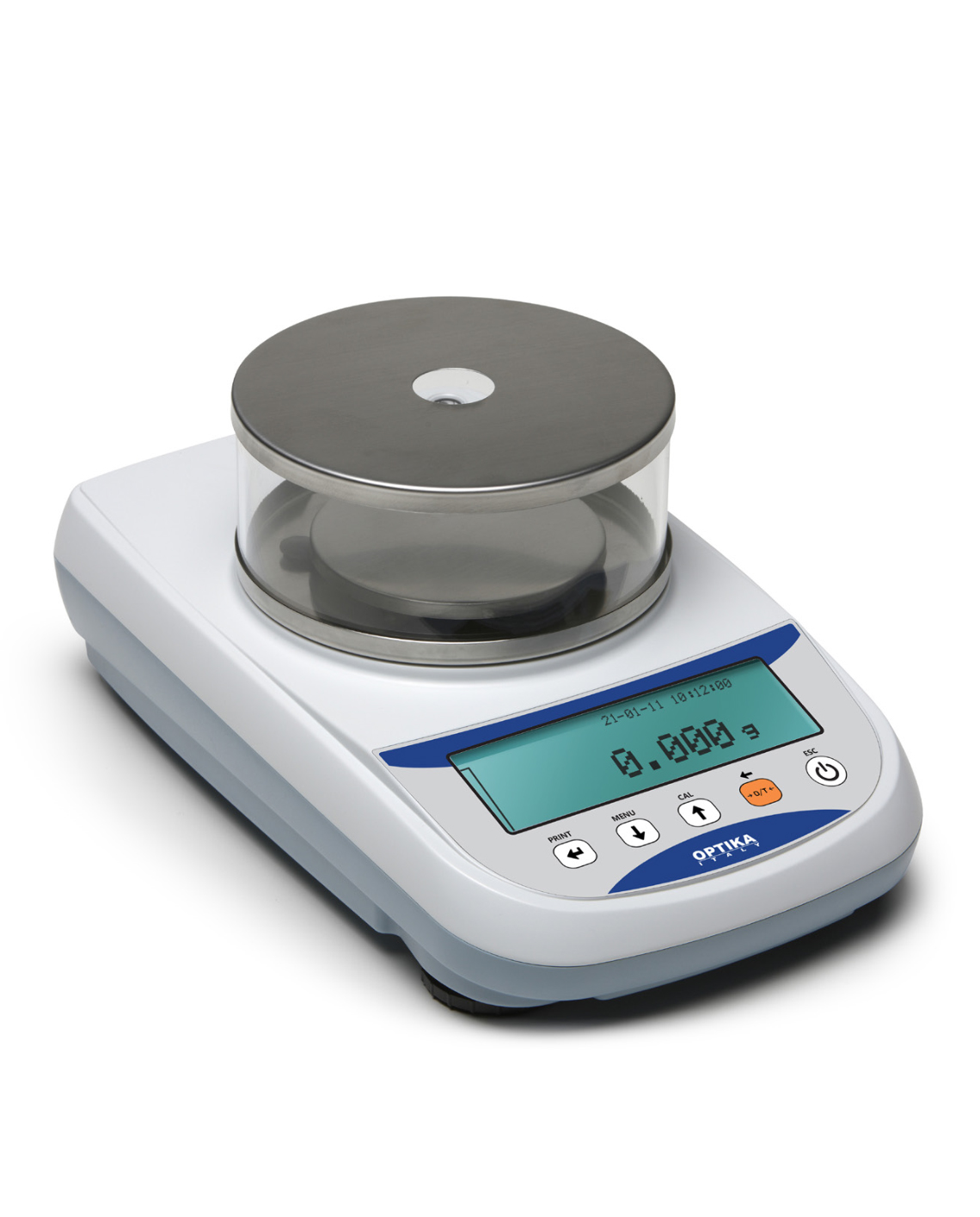

EG SERIES – 0,001g

All EG models are equipped with a large graphic display for easy reading and user friendly operations with many functions.
Double case structure, ergonomic keypad. EG balances have an extensive recipe database and many embedded advanced features make them perfect for use in laboratory, research departments, formulation and quality control applications.



Related Documents:

Icon OPTIKA - Balances Catalogue - 1.87 MB
Icon OPTIKA - Serie - BG-CG-CGH-DG-EG-EGH-FG-GG - Instruction Manual - EN - 1.56 MB
Icon OPTIKA - Serie - BG-CG-CGH-DG-EG-EGH-FG-GG - Instruction Manual - IT - 1.55 MB
Icon OPTIKA - Serie - B-C-CH-D-E-EH-F-G-BG-CG- CGH-DG-EG-EGH-FG-GG - Quick Guide - EN - IT - PT - 1.20 MB



Get a quote

(1) Only for external calibration model
(2) Optional external battery pack (CNS015)

Features

Images are for illustrative purposes only

» High resolution load cell weighing system
» External or automatic internal calibration
» Recipe database: 99 recipes can be stored, each with up to 20 ingredients
» Multilanguage: EN-DE-FR-IT-ES-PT
» GLP/ISO record keeping of weight values with date, time and serial number
» Round glass windshield
» Plastic protection cover
» Under hook weighing (1)

Technical Data

Technical data
• Span drift (+ 10…+ 30 °C): +/- 4ppm/°C
• Dimensions LxWxH (mm): 345x215x155
• Weighing chamber dimensions diameter- Height (mm): 150×70
• Power supply 110-230Vac, 50/60Hz; output 9V 1,2A 10VA

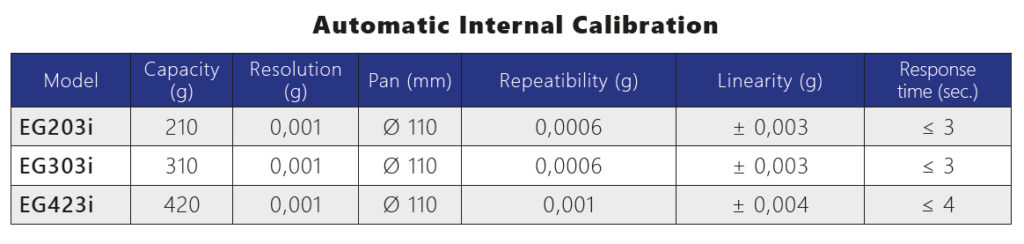

Internal calibration models
Net Weight: 3,6Kg

Accessories

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Density KIT for solids and liquids (CNS002)
• Density KIT for solids (CNS001)
• Portable rechargeable battery pack (CNS015)
• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
