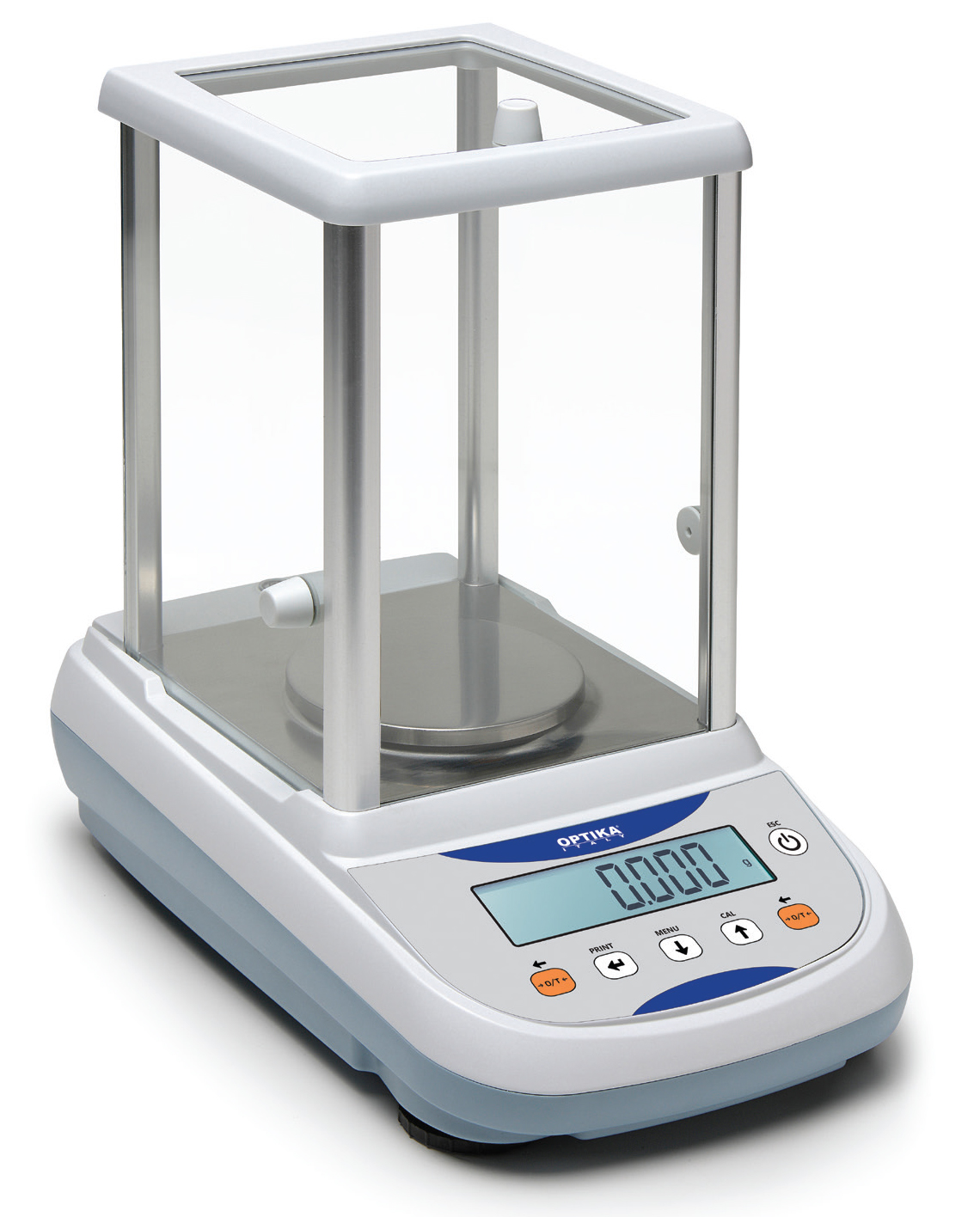

CH SERIES – 0,001g

A Top Quality series of Precision Balances that combine elegance with highly reliable measuring performance.
Double case structure, ergonomic keypad, external or internal calibration. Many embedded advanced features make them perfect for use in laboratory, research departments, formulation and quality control applications. CH models are equipped with a large glass draught shield.



Related Documents:





(1) Not available for verified models
(2)To order Verification please add -M to name, e.g. B214Ai-M

Images are for illustrative purposes only

» Electromagnetic force restoration weighing system
» External or automatic internal calibration
» LCD with backlight with adjustable contrast
» Large glass draught shield with 3 sliding doors for easy access to the items being weighed
» Plastic protection cover
» Under hook weighing (1)



Optional functions
Paper Grammage Function (CNS219)

Balance technical data
• Span drift (+ 10…+ 30 °C): +/- 4ppm/°C
• Dimensions LxWxH (mm): 345x215x345
• Weighing chamber dimensions LxWxH (mm): 162x171x225
• Power supply 110-230Vac, 50/60Hz; output 24V 500mA 13VA

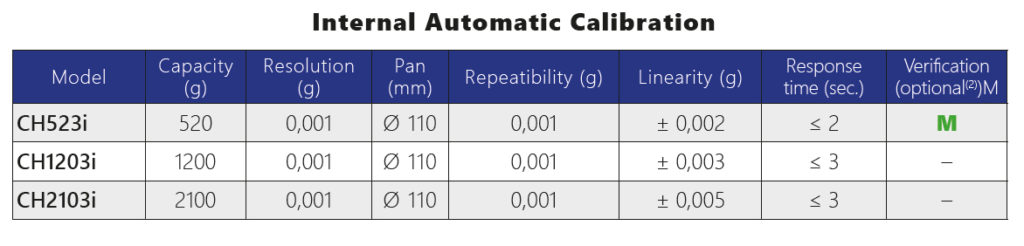

Internal calibration models
Net Weight: 6,3Kg

• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Serial Printer STAT, with Stastistics functions (CNS022)
• Density KIT for solids and liquids (CNS002)
• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
• Comunication KIT for balances (CNS0476)
• Conformity Declaration (Verification(2))
