OPTIKA - Balances Catalogue
(1) Not available for verified models
(2) To order Verification please add -M to name, e.g. B214Ai-M
Images are for illustrative purposes only
» Electromagnetic force restoration weighing system
» External or automatic internal calibration
» Recipe database: 99 recipes can be stored, each with up to 20 ingredients
» Large Graphic display allows efficient and easy operations
» Multilanguage: EN-DE-FR-IT-ES-PT
» GLP/ISO record keeping of weight values with date, time and serial number
» Large glass draught shield with 3 sliding doors for easy access to the items
» Plastic protection cover
» Under hook weighing (1)
Technical data
• Span drift (+ 10…+ 30 °C): +/- 4ppm/°C
• Dimensions LxWxH (mm): 345x215x345
• Weighing chamber dimensions LxWxH (mm): 162x171x225
• Power supply 110-230Vac, 50/60Hz; output 24V 500mA 13VA

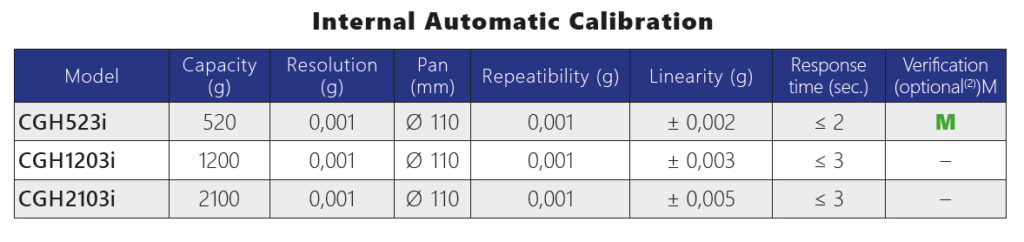

Internal calibration models
Net Weight: 6,3Kg
• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Density KIT for solids and liquids (CNS002)
• Density KIT for solids (CNS001)
• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
• Conformity Declaration (Verification(2))
