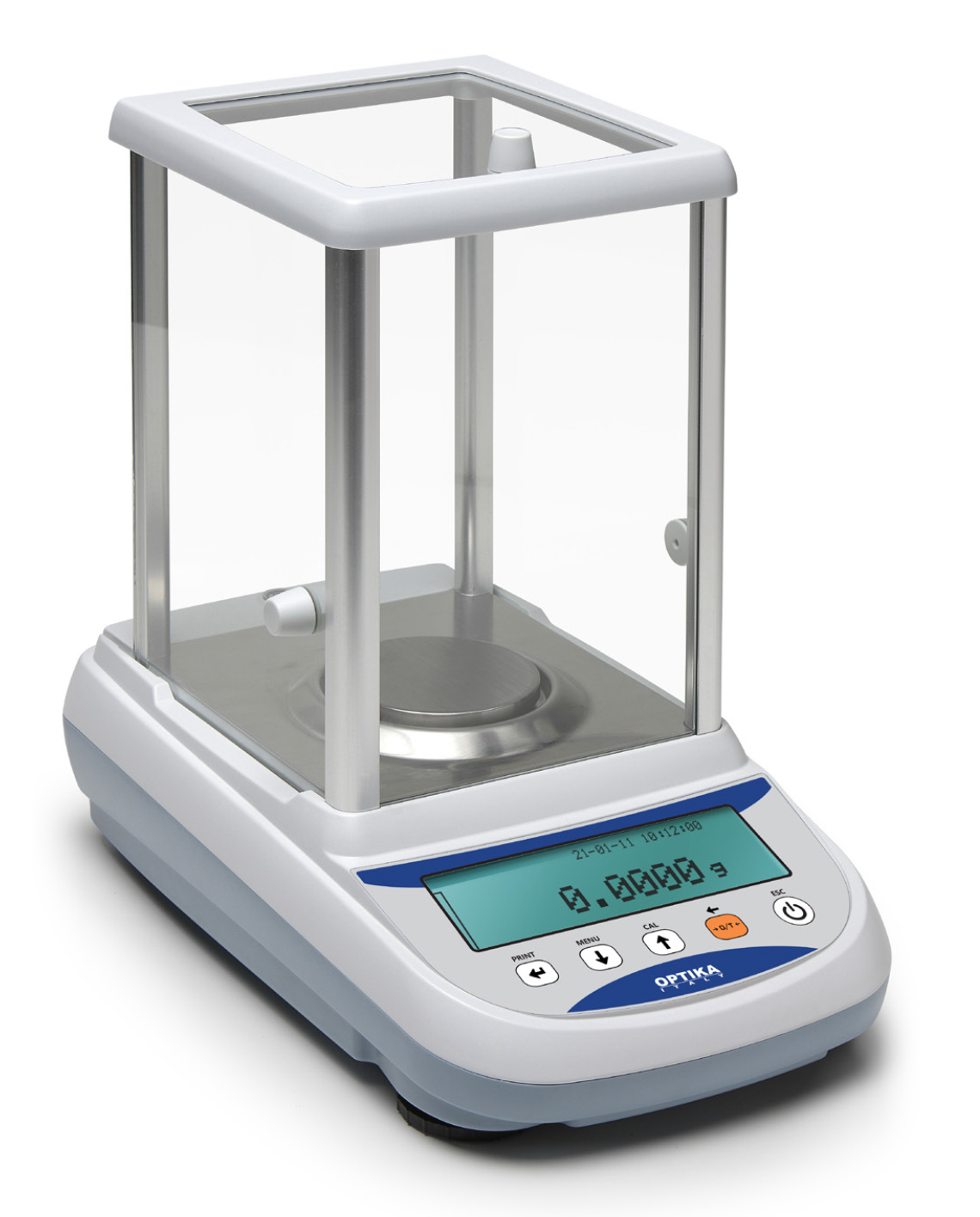

OPTIKA - Balances Catalogue
(1)To order Verification please add -M to name, e.g. B214Ai-M
Images are for illustrative purposes only
» Electromagnetic force restoration weighing system
» External or automatic internal calibration
» Recipe database: 99 recipes can be stored, each with up to 20 ingredients
» Large Graphic display allows efficient and easy operations
» Multilanguage: EN-DE-FR-IT-ES-PT
» GLP/ISO record keeping of weight values with date, time and serial number
» Round glass windshield
» Plastic protection cover
» Under hook weighing (1)

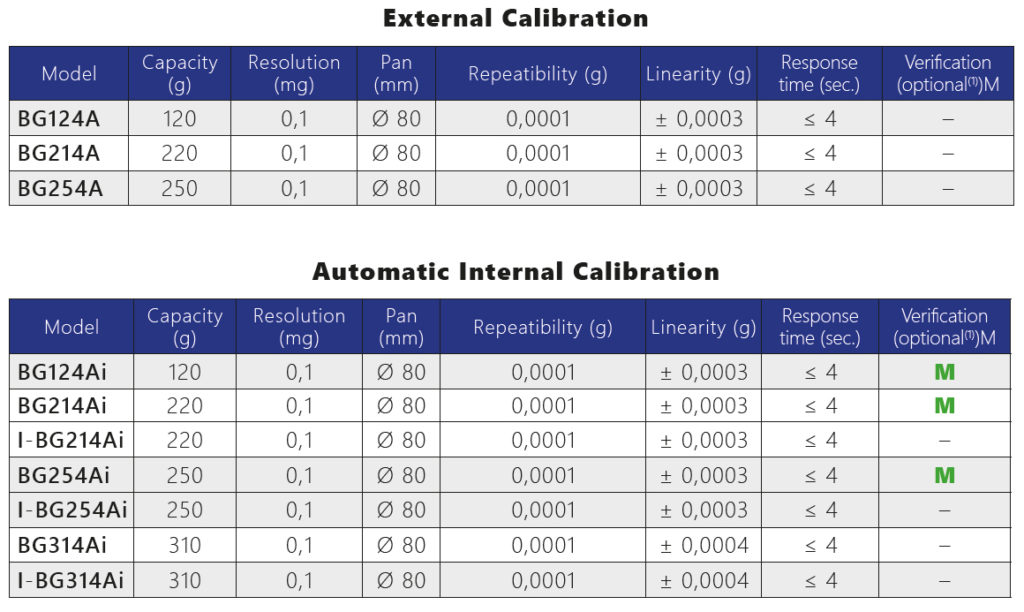

Technical data
• Span drift (+ 10…+ 30 °C): +/– 3ppm/°C
• Dimensions LxWxH (mm): 345x215x345
• Weighing chamber dimensions LxWxH (mm): 162x171x225
• Power supply 110-230Vac, 50/60Hz; output 24V 500mA 13VA
External calibration models
Net Weight: 6,3Kg
Internal calibration models
Net Weight: 6,6Kg
I-models net weight: 7,0Kg
Ioniser Technical data
• Operation modes: 2 minutes or continuosily for max 8 hours
• Ozone concentration: 0-0.05 ppm (2cm from ion source)
• Distance sample-ion source: about 5-40 cm
• Discharge time: 9s/5cm, 13s/10cm
• Ambient conditions: 0-50°C, 20-80% air humidity (non-condensing)
• Ioniser Power supply: IN AC 100-240V 50/60Hz, OUT DC 12V, 500mA
External calibration models
Net Weight: 6,3Kg
Internal calibration models
Net Weight: 6,6Kg
I-models net weight: 7,0Kg
• Portable ioniser Ion-A15 (CNS0371)
• Serial Printer TLP-50, with date/time (CNS054)
• Serial Printer DPP-250 (CNS007)
• Density KIT for solids and liquids (CNS002)
• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)
• Serial cable for serial output to printer or PC (CNS743)
• Factory Calibration certificate (CNS0333)
• Conformity Declaration (Verification(1))
